STAINLESS STEEL INLINE TRAP





Can be used with our Pre sloped Stainless Steel systems as well as a stand along unit. Made of stainless steel and comes with reversible (double sided) grate (ADA mesh pattern or non slip pattern). Supplied with sediment removal tray as well as end caps to end the run.
PARAMETERS
Article ................ 4SSPCB
Material ............. Stainless Steel (including bolts)
Dimensions ...... 15" width - 13" height
Weight ................. 10 LBS
Load Class ....... C Class - 55,000 LBS (Heavy Duty Load)
INCLUDED IN PACKAGE
Stainless Steel Inline Basin
Stainless Steel Reversible Grate
Stainless Steel Fasteners and Bolts
Stainless Steel End Caps (2 pieces)
** Please contact us for any additional requests or clarifications
Pre Slope Install with Mounting Brackets (ALREADY MOUNTED W/ CHANNEL)

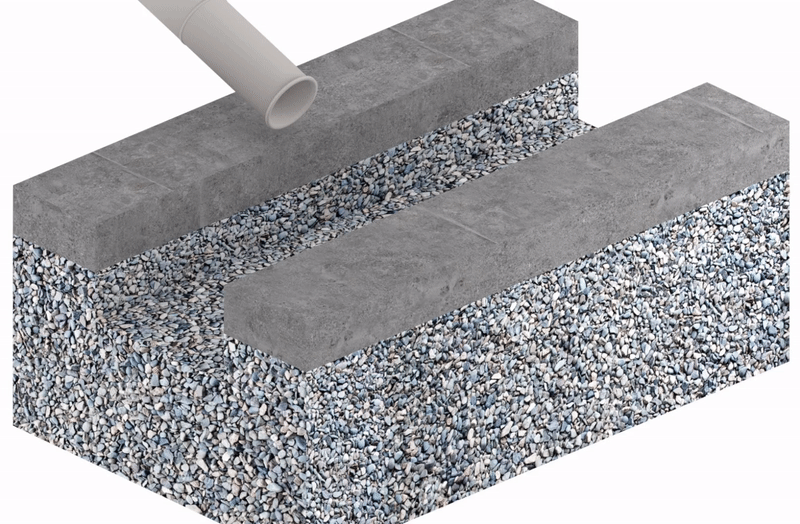

With our installation mounting brackets which are already mounted on the channel, you get to level off your entire system before the pour and design accordingly. Let’s get started.
1. Make sure you dig and prep your site exactly to your specifications. Make sure all outlet pipe locations are aligned, and that you have enough width in your trench to comfortably place the rebar into the already molded installation brackets which are fitted on the channel system.
2. Loosen the mounting bracket and leveling bolts. Insert your #3 rebar into the leveling hole.
3. Make sure your channel connections are water tight (we recommend a silicone in between the channel joints and MS polymer if you are utilizing our concrete systems) and that your end caps are tight and sealed off as well. Utilizing our Professional Channel Sealant is recommended for this with our SS bolting system.
4. Place your entire system into the trench. Make sure the rebar holding bolts are loose and will allow rebar to enter.
5. Insert rebar through the mounting bracket and into your ground – lift up on the channels and tighten the leveling brackets – level out your entire system.
6. Double check all rebar leveling bolts – they are tight and snug.
7. Pour your concrete and wait for it to settle… then you are finished!
