16x16 Catch Basin Plastic Cover

  • 16 inch Squared Catch Basin
  • Plastic Cover
  • Equipped with debris basket for sediment removal
  • Multiple outlets available on all sides (4", 6", 8" and 12")
  • ADA Compliant
  • Pedestrian Load Rated
  • Drawing on Specification Sheet
  • More details below
Sku: 8472PGCGB
$250.00
Maximum quantity available reached.

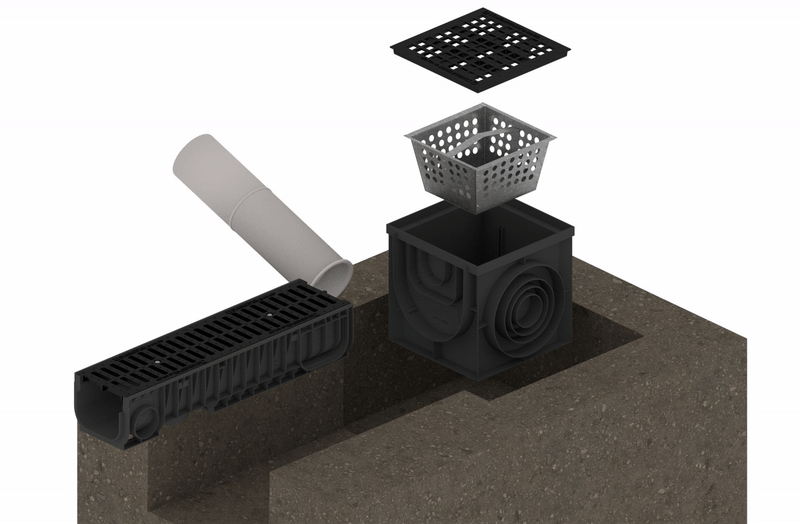

Standartpark 16"x16" catch basin is designed to fit our customers needs. Seamless installation process and availability of all common connection sizes (4", 6", 8", 12") on  sides makes our catch basin the first choice. It comes with plastic cover and our 4", 8" and 12" basic channels can connect to it.
The basket made of galvanized steel. It collects debris, preventing them from getting into the system. The grate simply snaps into the basin.

PARAMETERS

Article ................................ 8472PGCGB

Material ............................. PPE Plastic

Dimensions ....................... 16" L x 16" W x 16" H

Load Class ....................... A - 3,300 LBS (Pedestrian Load)

INCLUDED IN PACKAGE

1 - Plastic Catch Basin

1 - Plastic Cover

1 - Galvanized Steel Debris Basket

Our catch basin and sand trap installations are very similar to trench drain installation, however there are a couple of steps to make sure its ran smoothly. So, lets go step by step.

1. Make sure you know where your outlet height and location is going to be. Something that we need to make sure of is that the distance between the basin outlet and where the piping is, is level. This is by trial and error as stated in step 3.

2. Dig your basin hole 2-3 inches wider than the basin, and 3-4 inches deeper. This allows for your "filler" to get poured after placement. By filler we mean concrete, sand, clay, or any material that you are using.

3. Place your 2-3 inches of your filler at the bottom of your catch basin hole. Then at this point is where you will make sure that your pipe connection is level. Once you have the desired height on the surface, and your outlet is lined up, then you connect your outlet piping immediately.

4. Fill around your basin with cement , concrete, or whichever filler you desire. make sure its in all crevices and no air is in. This makes for a long lasting basin. If concrete, please allow to settle for 48 hours before driving over.

And that's all. If you have any questions, please feel free to contact us at anytime. Thank you for choosing Standartpark!
